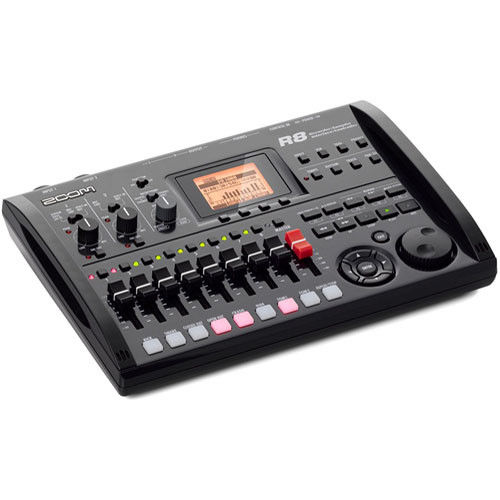

Zoom R8 8-Track Digital Recorder/Interface/Controller/Sampler

Zoom R8 8-Track Digital Recorder/Interface/Controller/Sampler

The R8 8-Track Digital Recorder/Interface/Controller/Sampler from Zoom is an ultra-portable music production solution, ideal for the musician on the go. The R8 packs the versatility of the larger R24 into a fresh compact design. Not only is the R8 an 8-track recorder that writes to SD flash memory cards, it's also a USB audio interface, a controller, and a pad sampler


Key Features

  • 8-Track Recorder
  • Writes to SD Cards
  • 16 or 24-bit WAV files
  • XLR/TRS Combo Inputs with 48V Phantom
  • Integrated Stereo Mics
  • High-Definition USB Interface
  • Full Mixing and Transport Controls
  • 8-Voice Pad Sampler and Sequencer
  • Uses AA Batteries or USB Bus Power
  • Includes Software and Drum Loops


Zoom R8 Specs

Tracks 8 x Mono Recording Tracks
2 x Simultaneous Recording Tracks
8 x Simultaneous Playback Tracks + Metronome
Recording Format 44.1/48kHz, 16/24-bit WAV
Recording Time 200 Minutes per GB (Mono)
Functions Projects: 1000
Markers: 100/Project
Locator: Hours/Minutes/Seconds/Milliseconds and Bars/Beats/Ticks
File Editing: Divide, Trim
Punch-In/Out (Manual, Auto)
A-B Repeat
Interface 2 x Recording Channels
2 x Playback Channels
24-bit, 44.1/48/88.2/96kHz
Mixer 9 x Faders (8 Mono, 1 Master)
3 Band EQ
Pan (Balance)
2 x Effect Sends
Tracks 1/2 and 7/8 Selectable in Pairs for Stereo Link
Effects Algorithms: 8 (Clean, Distortion, Aco/Bass Sim, Bass, Mic, Dual Mic, Stereo, Mastering)
Patches: 310 Insert, 60 Send-Return
Effect Modules: 7 Insert, 2 Send
Tuner: Chromatic, Guitar, Bass, Open A/D/E/G, D Modal
Rhythm Patterns Voices: 8
Format: Linear PCM
Drum Kits: 10
Pads: 8, Velocity-Sensitive
Precision: 48 ppqn
Patterns: 511/Project
Tempo: 40.0 to 250.0 BPM
Sampling Playback Formats: 44.1/48kHz, 16/24-bit WAV
Editing: Trim, Time-Stretch
Recording Media SD Card (16MB - 2GB)
SDHC Card (4GB - 32GB)
AD/DA Conversion 96kHz, 24-bit, Delta-Sigma
Display 128 x 64 Pixel Backlit LCD
Microphone 2 x Omnidirectional Condenser Microphones (Stereo Pair)
Gain: -50dBm < Continuous < +4dBm
Connectors 2 x Balanced XLR/TRS Combo Inputs
1 x Stereo 1/4" Output (2 Jacks, L/R)
1 x Stereo 1/4" Headphone Jack (2 x 20mW, 32 Ohm Load)
1 x 1/4" Control Input (FS01)
1 x USB 2.0 Mini-B High-Speed Connector (Interface/Control and Mass Storage)
1 x DC Power Input
Input Level -50dBm < Continuous < +4dBm
Input Impedance Balanced: 1 kOhm
Unbalanced: 50 kOhms
Hi-Z: 470 kOhms
Signal to Noise Ratio 93dB
Phantom Power                                                  48V, 24V
Power 4 x AA Batteries (Up to 5.5 Hours Operation with Backlight On and Phantom Power Off)
USB Bus Power
5VDC, 1A via AC Adapter (Zoom AD-17, Included)
Dimensions (WxDxH) 10.1 x 7.48 x 2" (257 x 190 x 51mm)
Weight 27.5 oz (780g)
