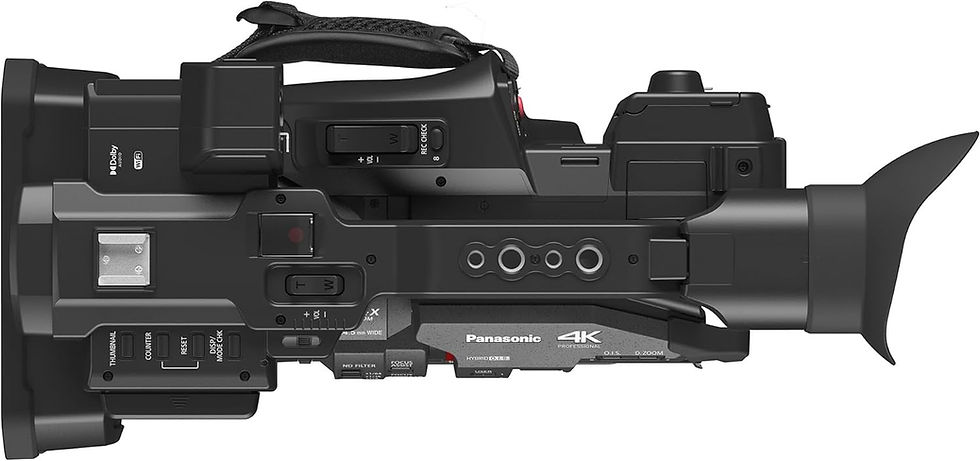

Panasonic HC-X2 Specs

Key Specs
Image Sensor
1"-Type
Effective Sensor Resolution
15.03 Megapixel
Image Stabilization
Optical in Integrated Lens
Digital
Max Recording Modes
MOV 4:2:2 10-Bit
Up to UHD 4K from 2 to 60.00 fps

MOV 4:2:0 8/10-Bit
UHD 4K from 2 to 59.94 fps
MP4 4:2:0 10-Bit
UHD 4K at 25/29.97/50/59.94/23.98 fps
MP4 4:2:0 8-Bit
Up to UHD 4K at 25/29.97/23.98 fps
AVCHD 4:2:0 8-Bit
Up to 1080p at 29.97/50/59.94/23.98 fps
Max Video Output
via HDMI Up to UHD 4K
via SDI/BNC
Up to 1080p
Show More
Media/Memory Card Slot
Dual Slot: SD/SDHC/SDXC (UHS-I)
Video I/O
HDMI / BNC
Mobile App Compatible
No
Battery
Panasonic AG-VBR Series

Imaging
Image Sensor
1"-Type MOS
Effective Sensor Resolution
15.03 Megapixel
Image Stabilization
Optical in Integrated Lens, 5-Axis (Video Only)
Digital
Built-In ND Filter
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Capture Type
Stills & Video

Exposure Control
Shutter Type
Electronic Global Shutter
Shutter Speed
1/8000 to 1/6 Second
Precise Scan Rate Control
No
Minimum Illumination
0.2 Lux at 1/30 Shutter Speed
White Balance
Range: 2000 to 15,000K
Presets: ATW, Auto

Lens
Focal Length
8.8 to 176mm (35mm Equivalent: 24.5 to 490mm)
Zoom
20x Optical
Maximum Aperture
f/4.5
Minimum Aperture
f/2.8
Filter Size
67 mm
Control Rings
Focus/ Zoom/ Iris

Focus
Focus Mode
Automatic, Manual Focus

Video Capture
Internal Recording
MOV 4:2:2 10-Bit
3840 x 2160 from 2 to 60.00 fps (200 Mb/s VBR)
1920 x 1080p from 2 to 23.98/59.94 fps (50 to 200 Mb/s VBR)
1920 x 1080i at 50/59.94 fps (50 Mb/s VBR)
MOV 4:2:0 8/10-Bit
3840 x 2160 from 2 to 59.94 fps (100 to 200 Mb/s VBR)
MP4 4:2:0 10-Bit
3840 x 2160 at 25/29.97/50/59.94/23.98 fps (72 to 100 Mb/s VBR)
MP4 4:2:0 8-Bit
3840 x 2160 at 25/29.97/23.98 fps (72 Mb/s VBR)
1920 x 1080p at 23.98/50/59.94 fps (50 Mb/s VBR)
AVCHD 4:2:0 8-Bit
1920 x 1080p at 29.97/50/59.94/23.98 fps (17 to 25 Mb/s VBR)
1920 x 1080i at 50/59.94 fps (17 Mb/s VBR)
1280 x 720 at 50/59.94 fps (8 Mb/s VBR)
Video Output
via HDMI
3840 x 2160
1920 x 1080
1280 x 720
720 x 480p
via SDI/BNC
1920 x 1080p
1280 x 720
720 x 480p
Broadcast Output
NTSC/ PAL
Fast-/Slow-Motion Support
Yes
Built-In Microphone
Stereo
Audio Recording
AVCHD: 2-Channel, 16-Bit at 48 kHz
MP4: 2-Channel, 16-Bit at 48 kHz via AAC Audio
MOV: 2-Channel, 24-Bit at 48 kHz
IP Streaming
H.264, MP4, RTMP, RTMPS, RTP, RTSP
320 x 180 to 1920 x 1080 at 24p, 30p, 50p, 59.94p, 60p (0.5 to 24.00 Mb/s)

Interface
Media/Memory Card Slot
Dual Slot: SD/SDHC/SDXC (UHS-I)
Internal Storage
No
Video I/O
1x HDMI Output
1x BNC (3G-SDI) Output
Audio I/O
2x XLR 3-Pin Microphone Input (+48 V Phantom Power)
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
Power I/O
1x Barrel (11.4 to 12.6VDC) Input
Other I/O
1x 2.5 mm Sub-Mini Input
1x USB-C Input
1x BNC (Timecode) Input/Output
Wireless
Wi-Fi 4 (802.11n)
Mobile App Compatible
No
Global Positioning (GPS, GLONASS, etc.)
No

Monitor
Display Type
Primary Monitor: Articulating 3.5" Non-Touchscreen LCD

Viewfinder
Type
Electronic (OLED)
Resolution
1,770,000 Dot

Power
Battery
Panasonic AG-VBR Series
